SLA Elapsed Time Custom Field

1. Select "SLA Elapsed Field" Custom Field from Advanced Tab of the Custom Fields Dialog

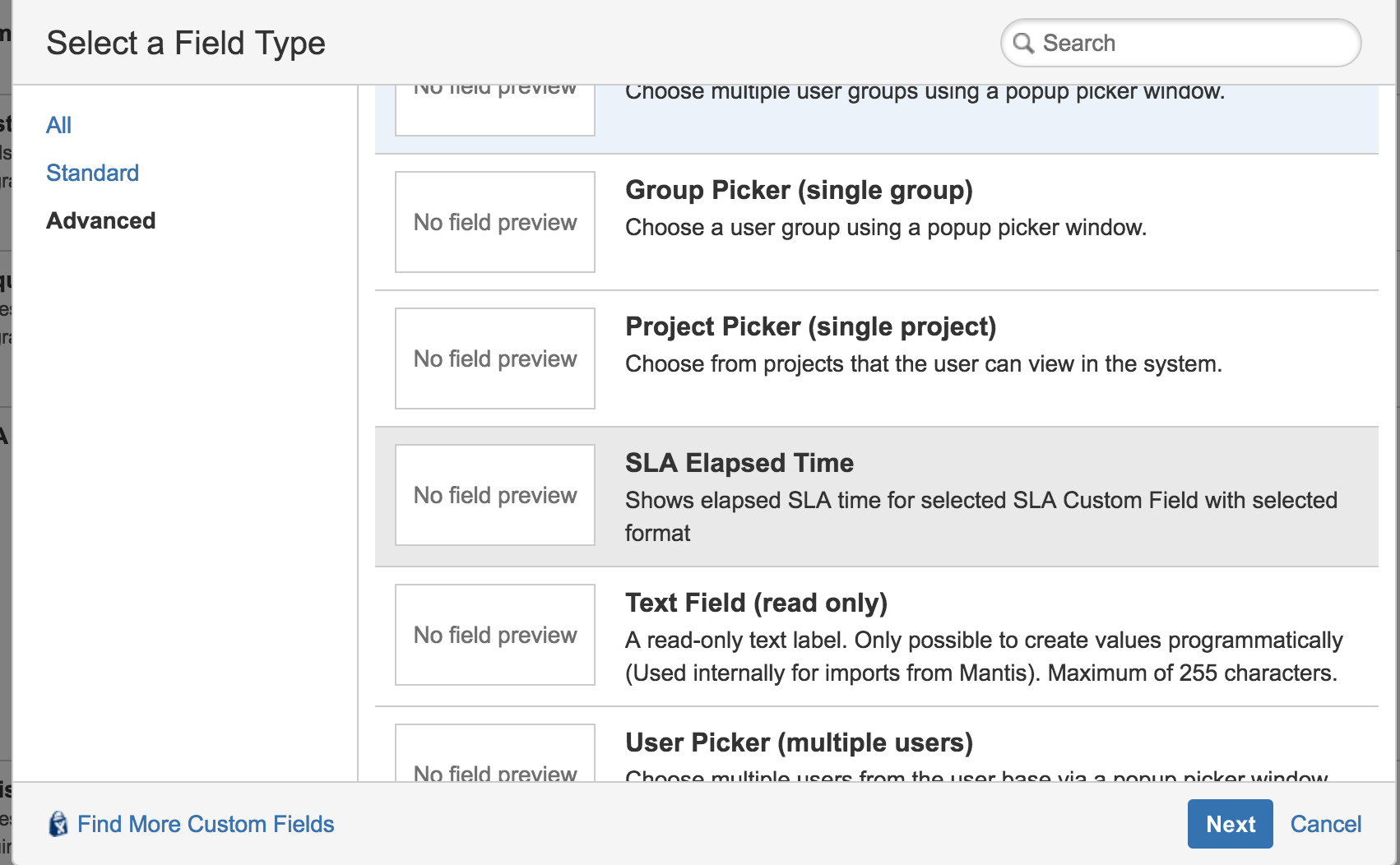

Select SLA Elapsed Time Field.png

2. Select screen which field is added

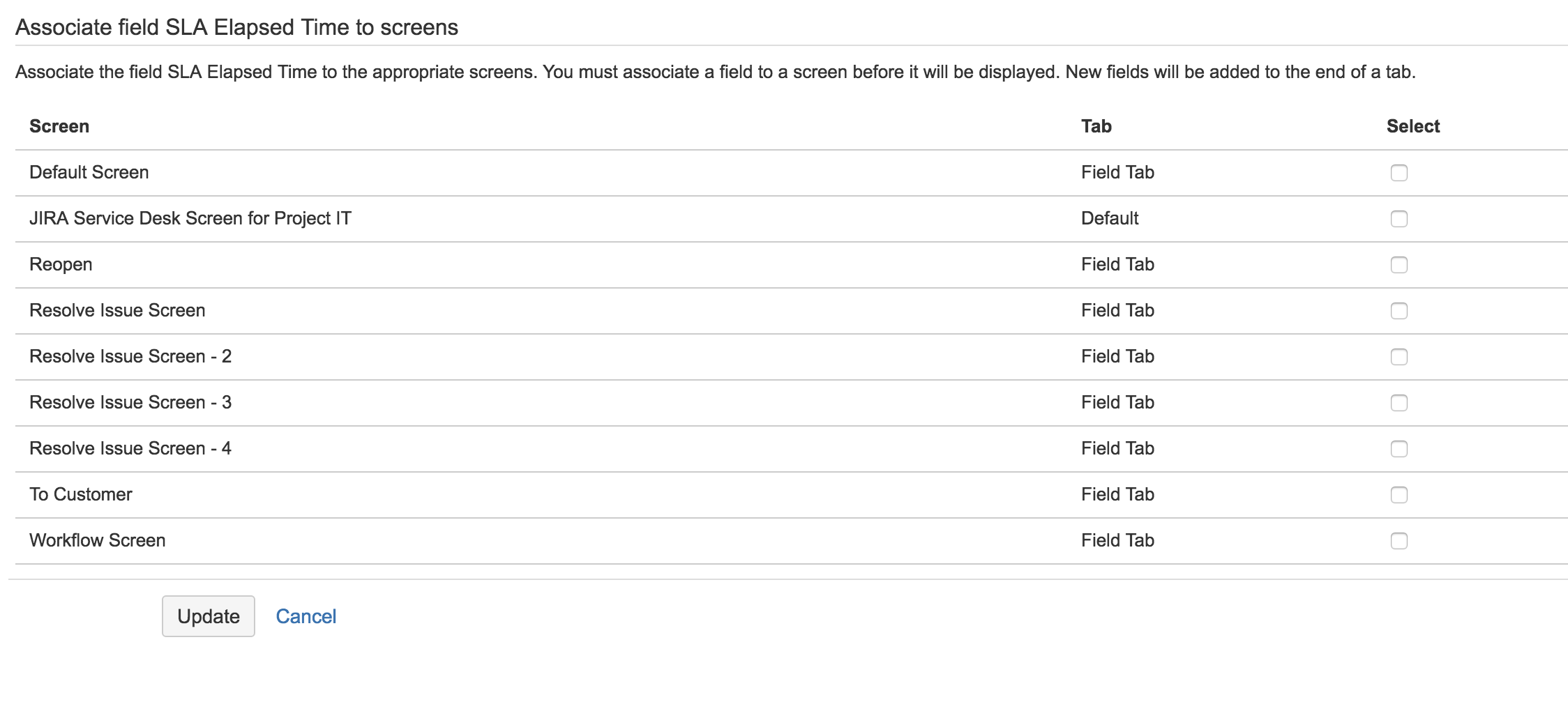

Select Screen.png

3. Select configure field form Custom Field

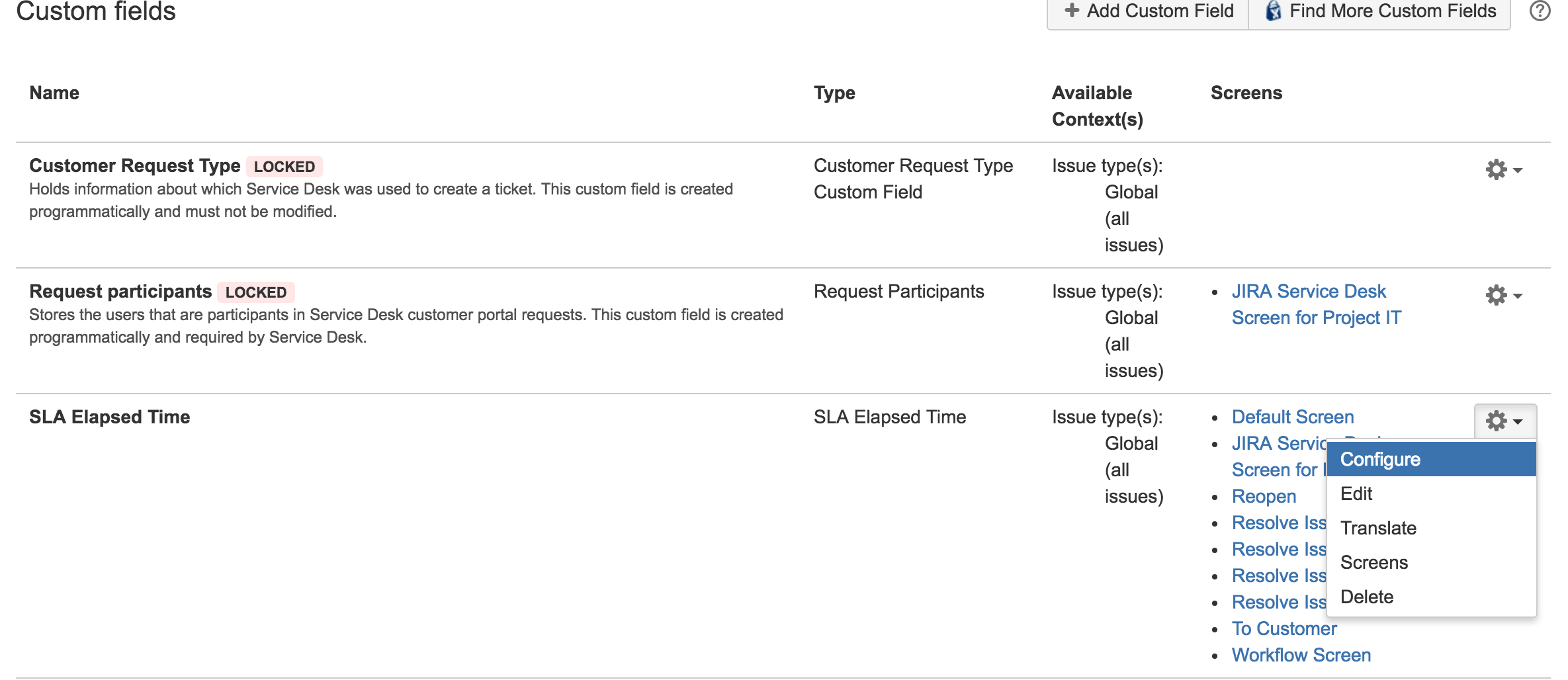

Configure Field.png

4. Click "Edit Options" of the custom field

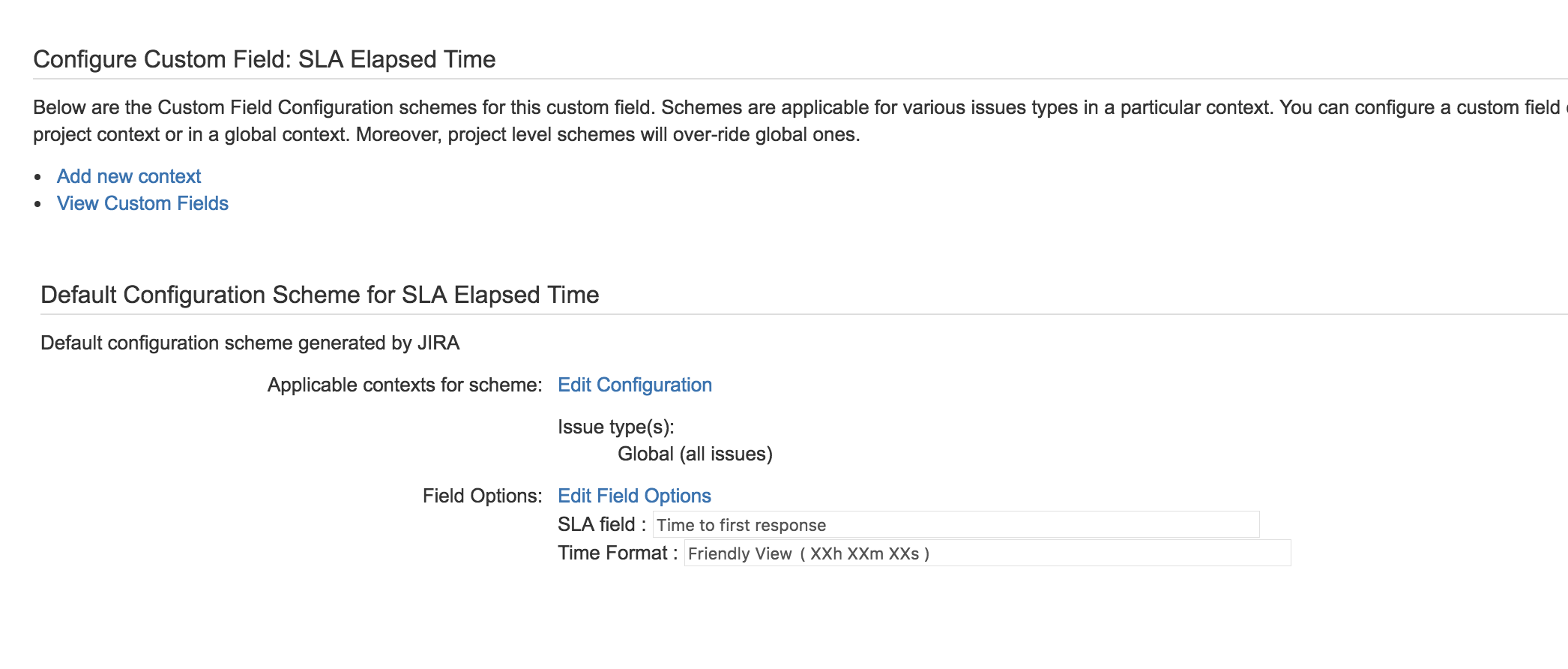

Edit Options.png

5. Edit Options of the custom field

Options

Description

SLA Field

Select SLA field to show elapsed time for this field

Time Format

Select time format to list elapsed time

  • Default View ( hh:mm:ss )

  • Friendly View ( XXh XXm XXs )

  • Millisecond View ( XXXXXX msec )

  • Advanced View ( Duration Pattern )


Not 1: Millisecond time format can be used for Excel export to calculate average elapsed time

Not 2: Duration Time pattern can be used with Advanced View Mode. Pattern details can be accessed from the link.

Pattern Tokens

character

duration element

y

years

M

months

d

days

H

hours

m

minutes

s

seconds

S

milliseconds

'text'

arbitrary text content

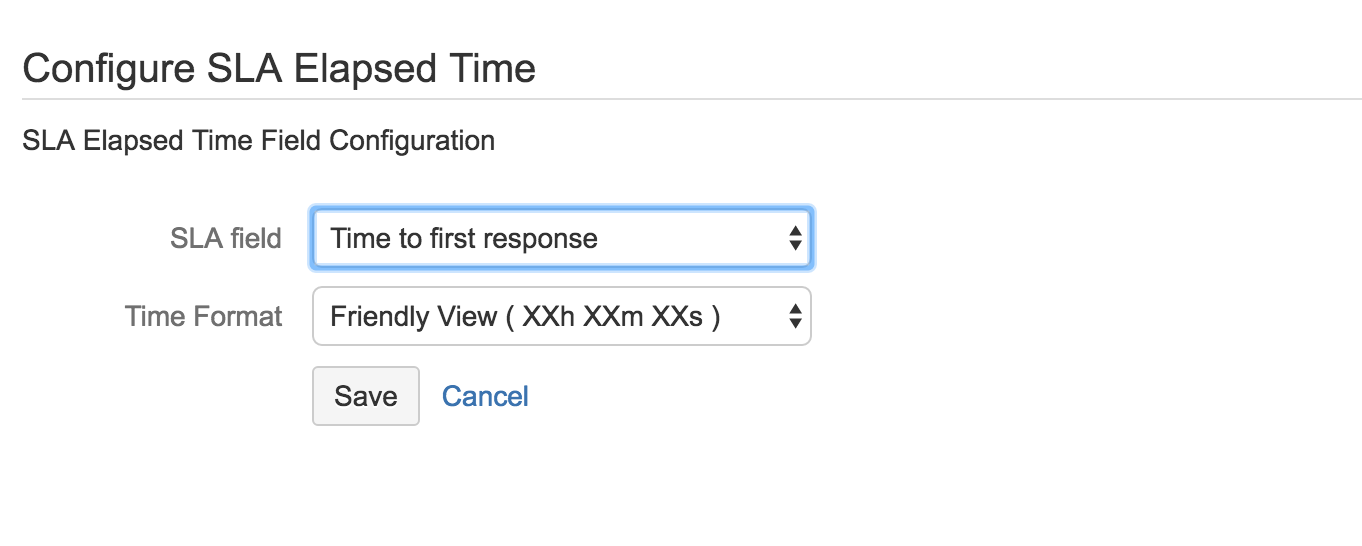

Select Options.png
